Your current location: ProductsOther ValvesBrass Exhaust Valve

P15W-16 Brass Exhaust Valve

Product overview

Product model: P15W-16
Nominal diameter: DN15~25mm
Nominal pressure: 1.6MPa
Working medium: water and gas
Operating temperature: -10℃≤ T ≤100℃
Pipe thread standard: in line with ISO228 standard

P15W-16 Brass Exhaust Valve product details

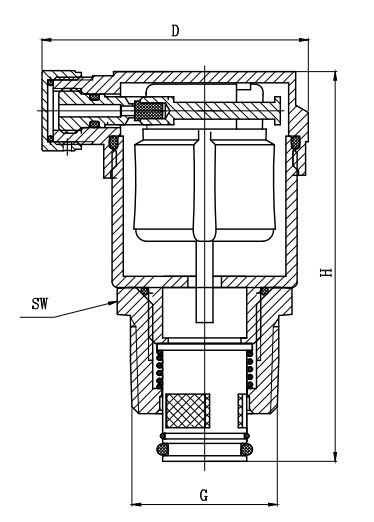

P15W-16 Brass Exhaust Valve specifications and dimensions

DN(mm) NPS(in) L D S
15 ZG1/2 76 31.5 22
20 ZG3/4 78 44 27
25 ZG1 79 44 33.5
20(A2) ZG3/4 67.5 38 27


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the P15W-16 Brass Exhaust Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.

Next：Static Balance Valve
Previous：Pressure Relief Valve
